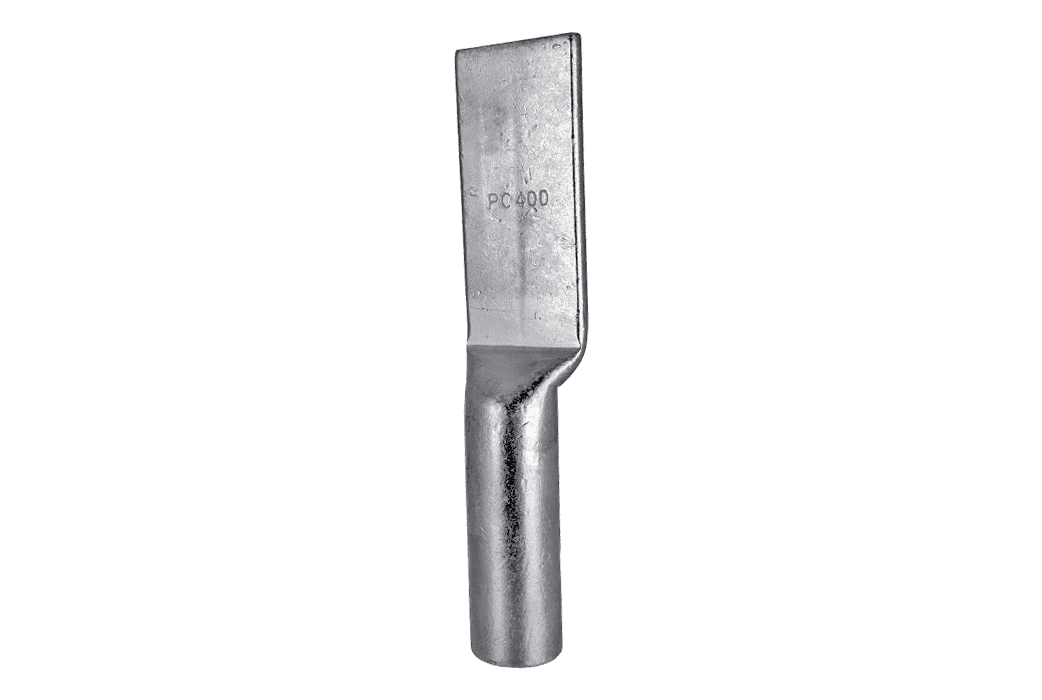

70mm2 Long Palm Lug - Blank

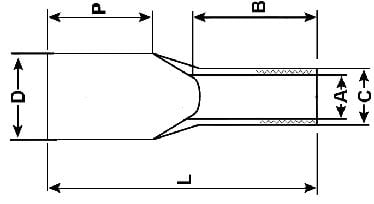

(B) Barrel Length: 48mm

(D) Palm Width: 21mm

(P) Palm Length: 100mm

(C) Barrel O.D: 14.3mm

(A) Barrel I.D: 11.2mm

(L) Total Length: 154mm

MATERIAL

99.9% copper, 99.9% tin plated

OPERATING TEMP

Up to 155°c

RATING

Up to 30kV

CONFORMS TO

AS/NZS 4325:1995, RoHS, REACH
