Spare wheel Maxtrax side Mount

Original price $359.00 - Original price $399.00
Original price
$359.00
$359.00 - $399.00
Current price $359.00

*This product is often made to order. The estimated wait time is 4 weeks from the time of placing the order.


We do not stock this product however we do take Pre orders for Kaon so you dont need to stress about missing out when they do come back in stock.

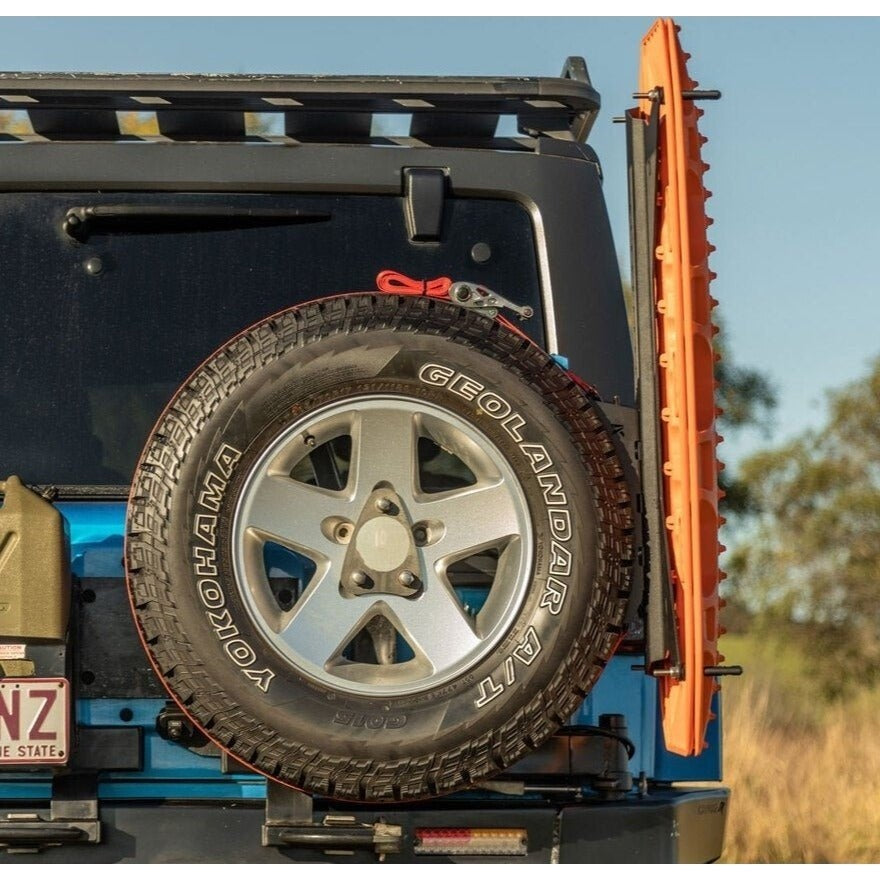

The ultimate way to mount your Maxtrax, Out-Back.

Create a mount to suit your setup. Fixed to the Out-Back Spare Tyre Mount, adjust it up and down, in and out. Run it left, right or even above your spare tyre – with the Out-Back Mount, it's all up to you.



FEATURES:

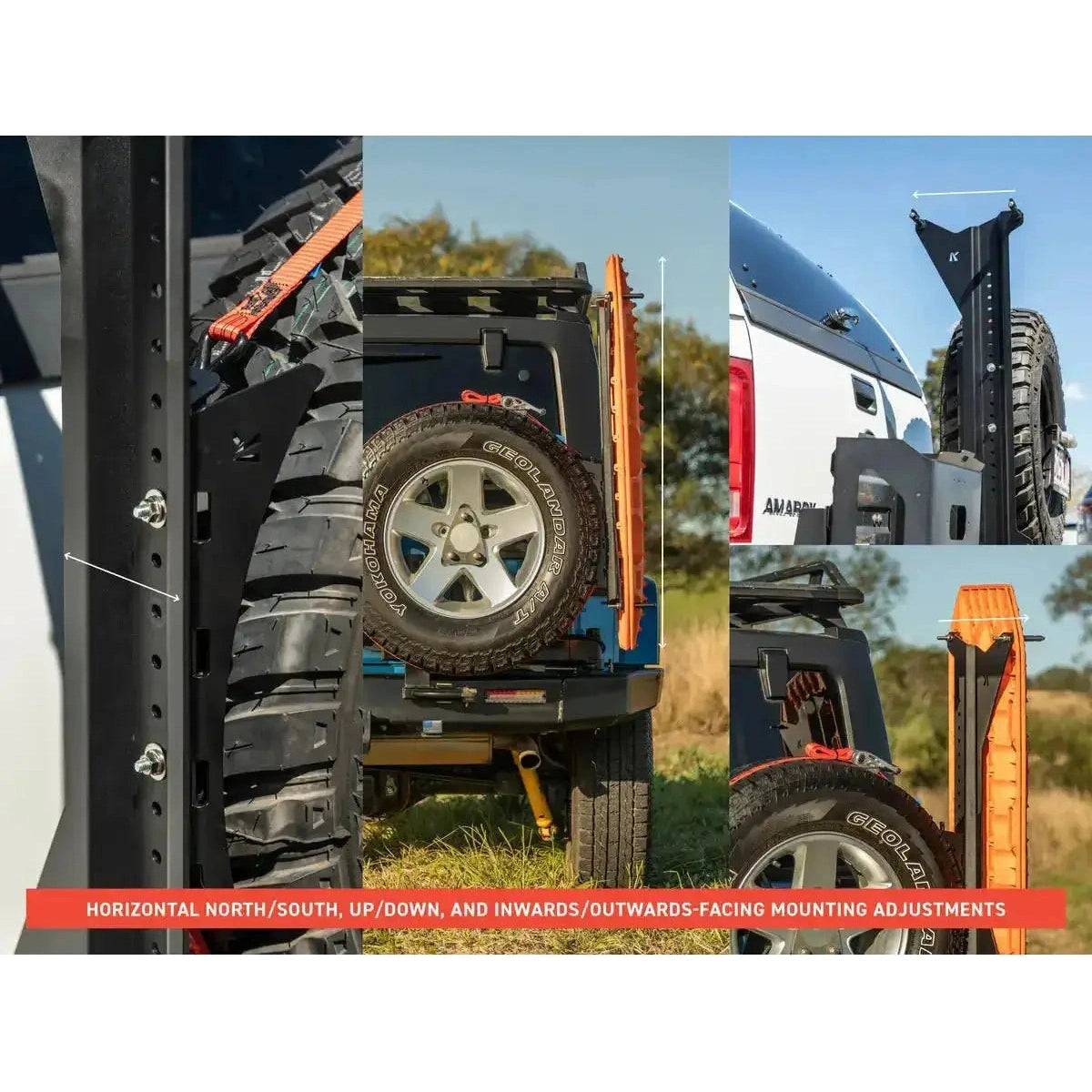

  • Multiple mounting holes and offset design provides maximum adjustability, so you can position to suit your setup.
  • Side mounting on your spare tyre allows you to still run a rear bin bag or factory reversing camera.

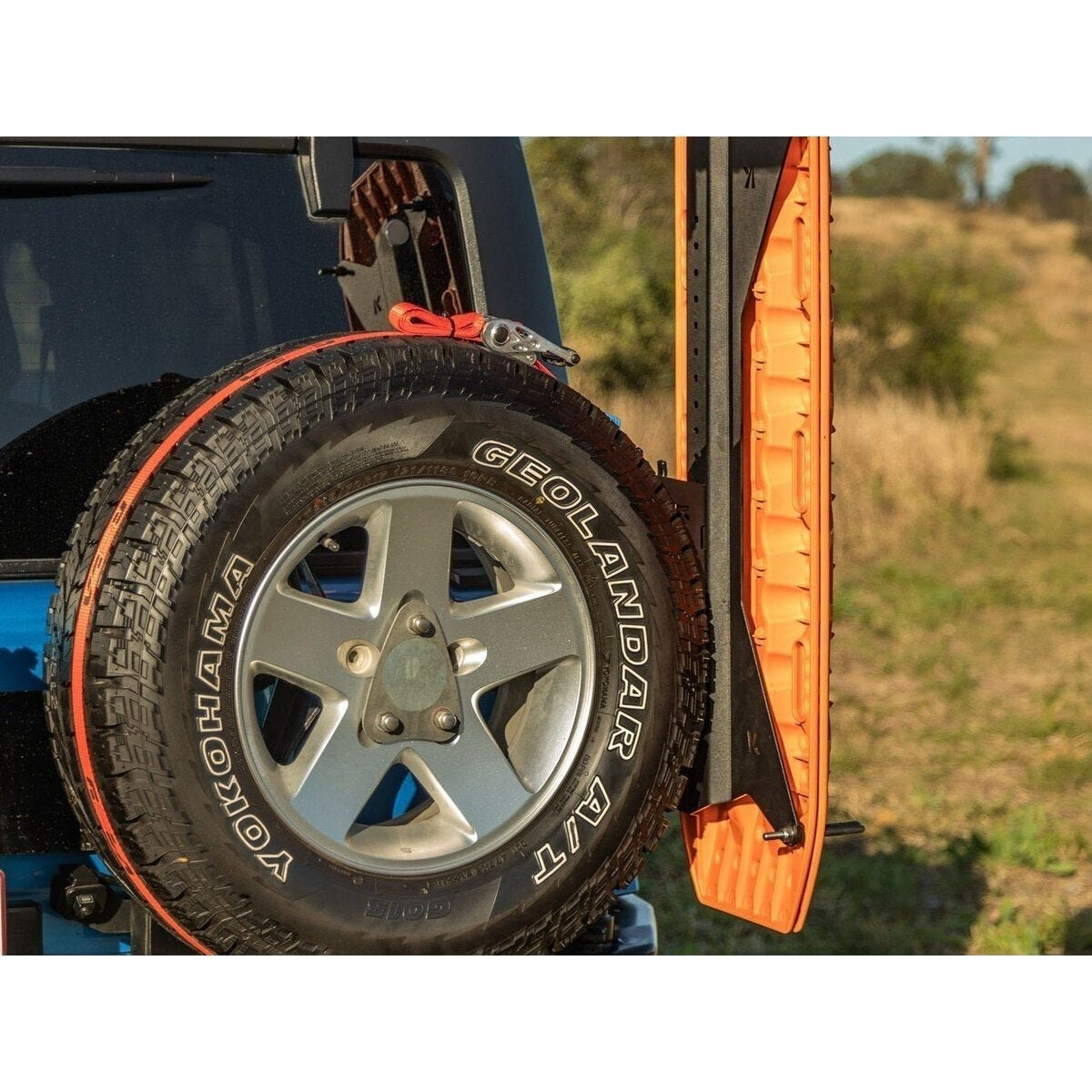

  • Maxtrax sit flush with the sidewall of the tyre.

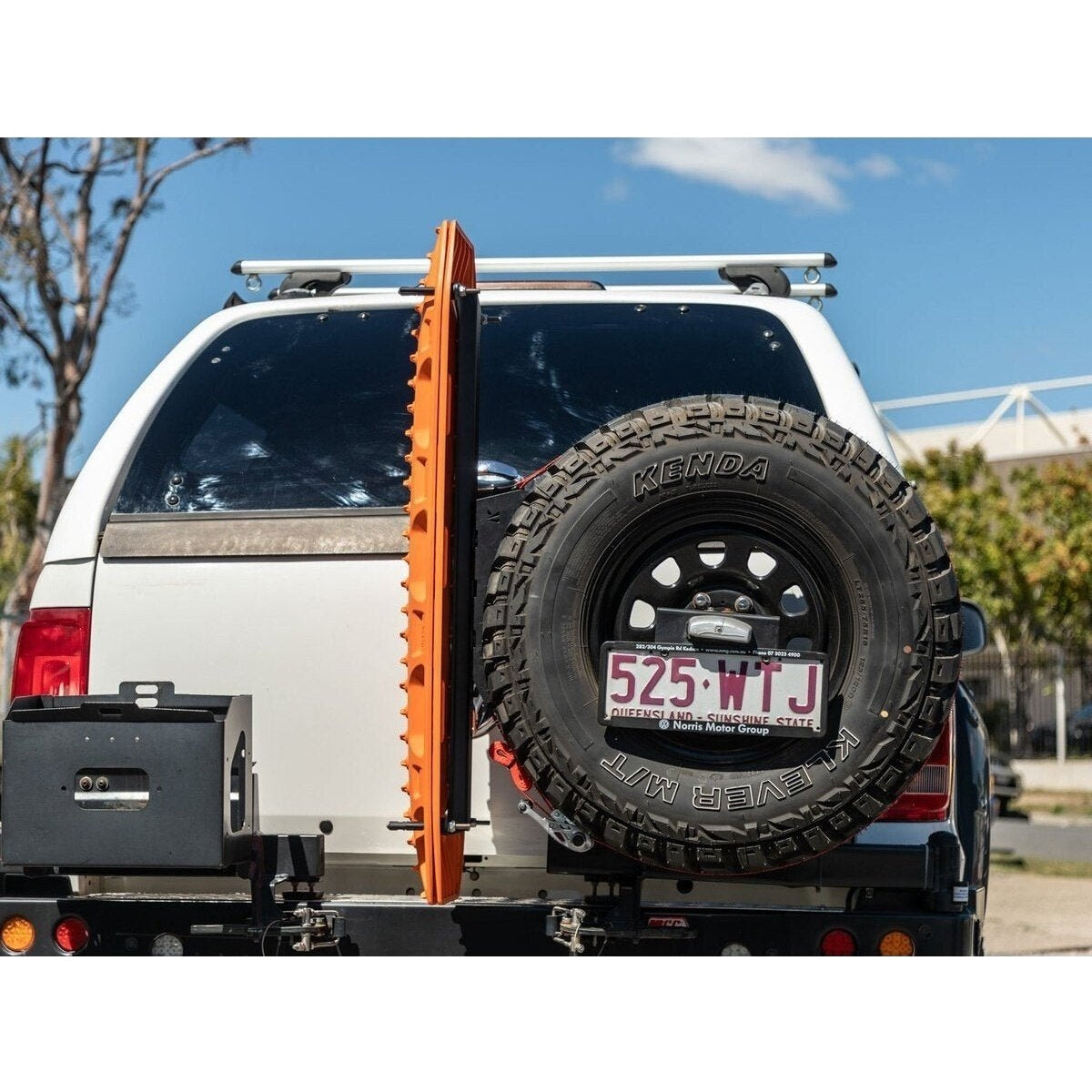

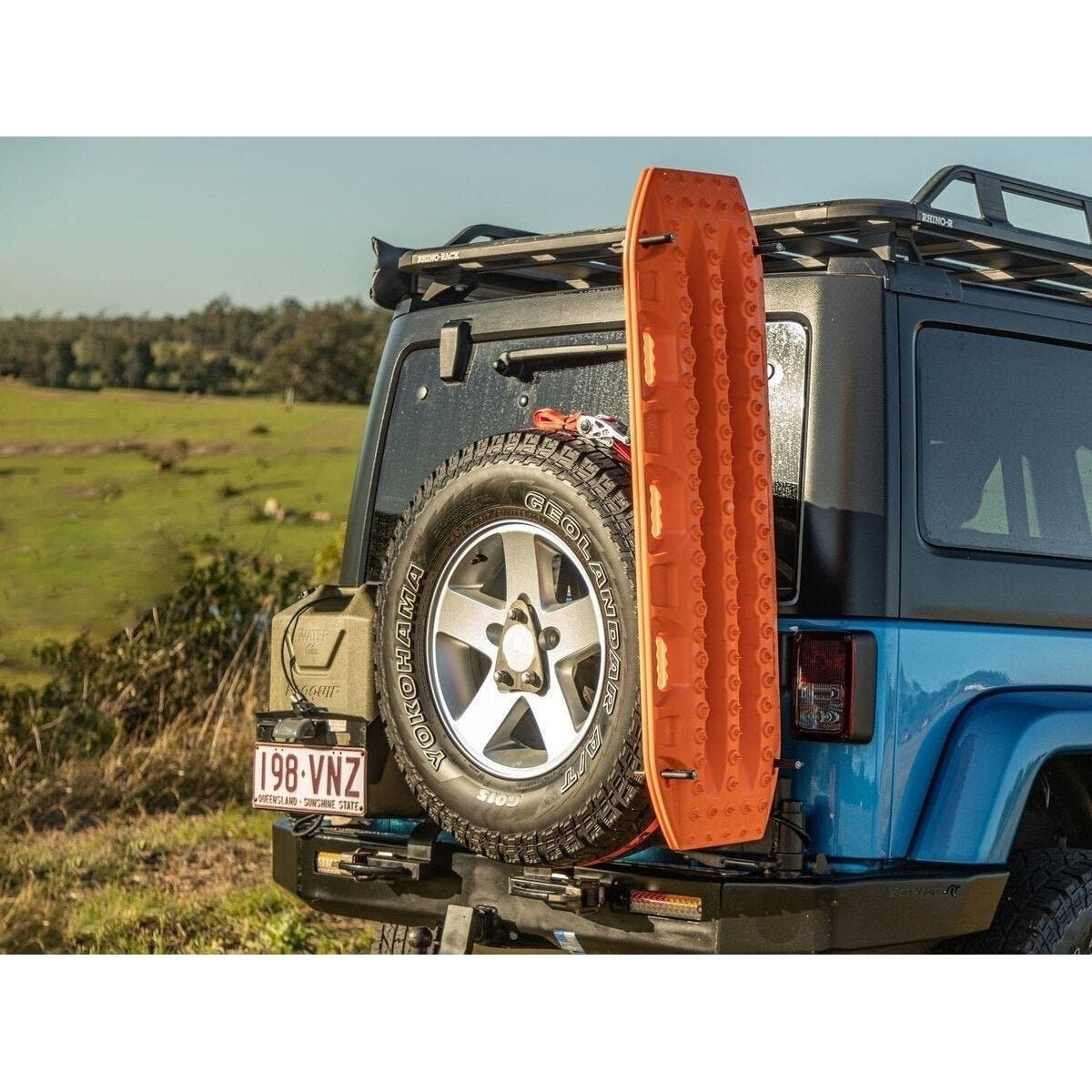

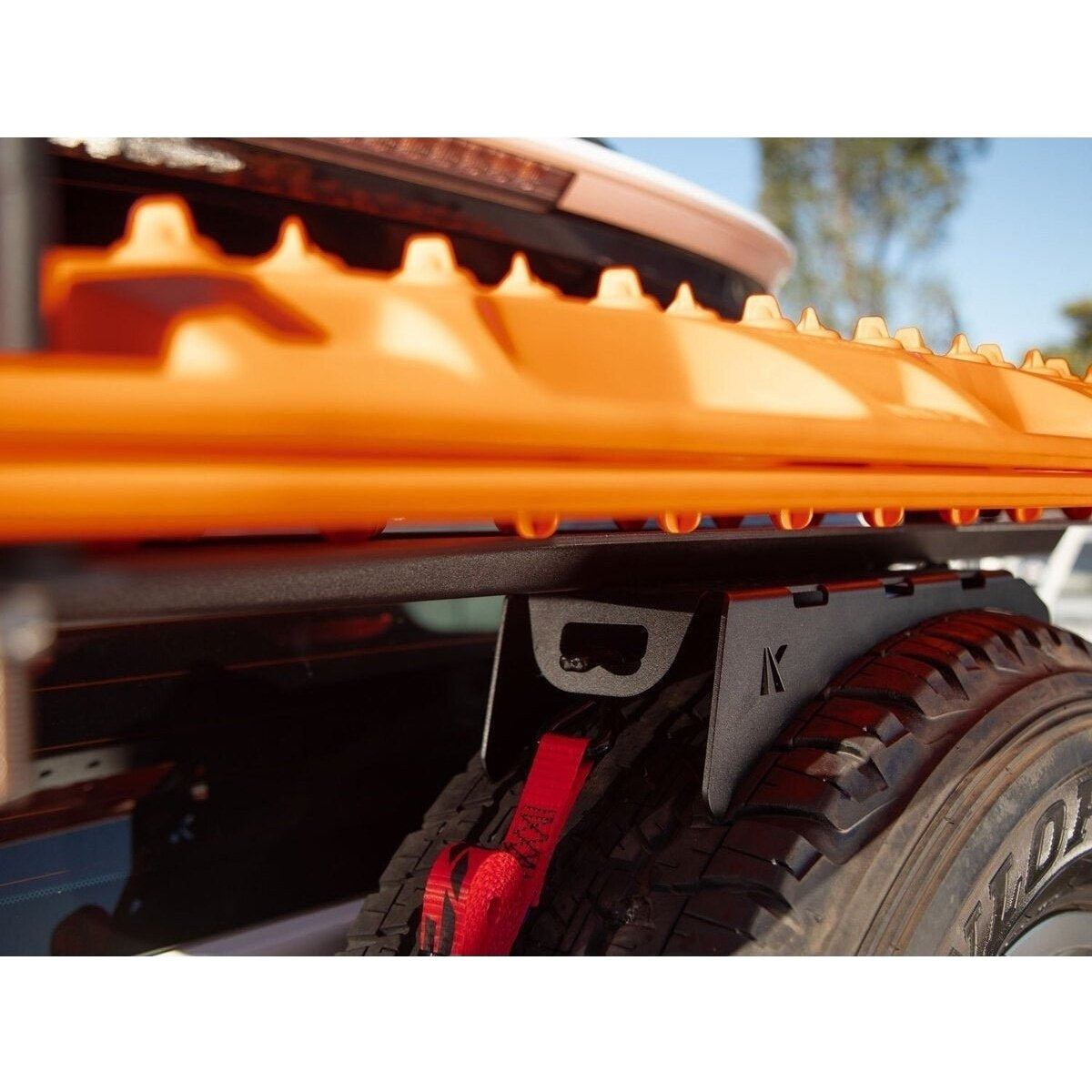

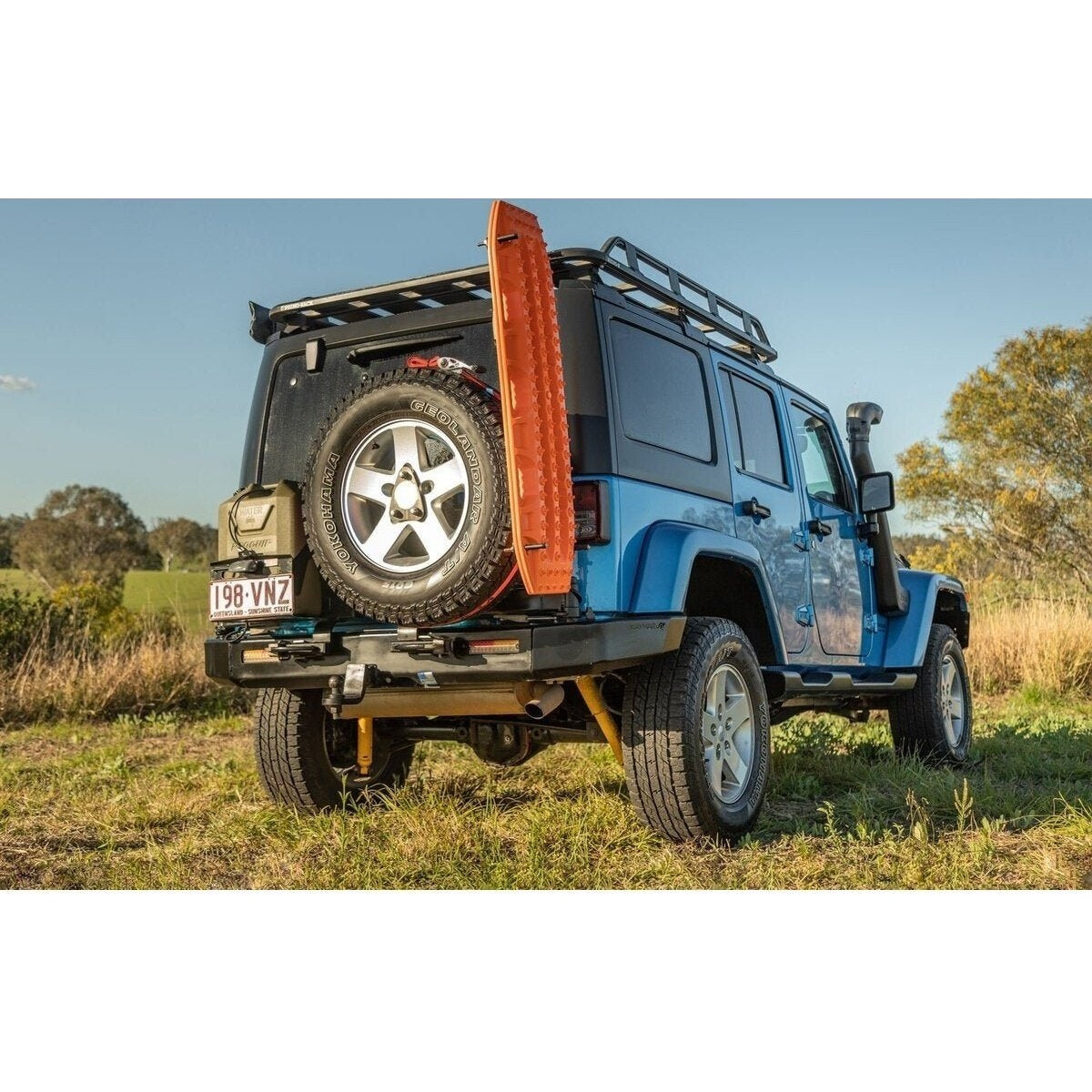

  • Can be used in multiple positions, depending on the placement of your spare. Place it on the left-hand side, right-hand side or even horizontally above the tyre.
  • Accessible height is great for mobility issues or those without room on their roof.

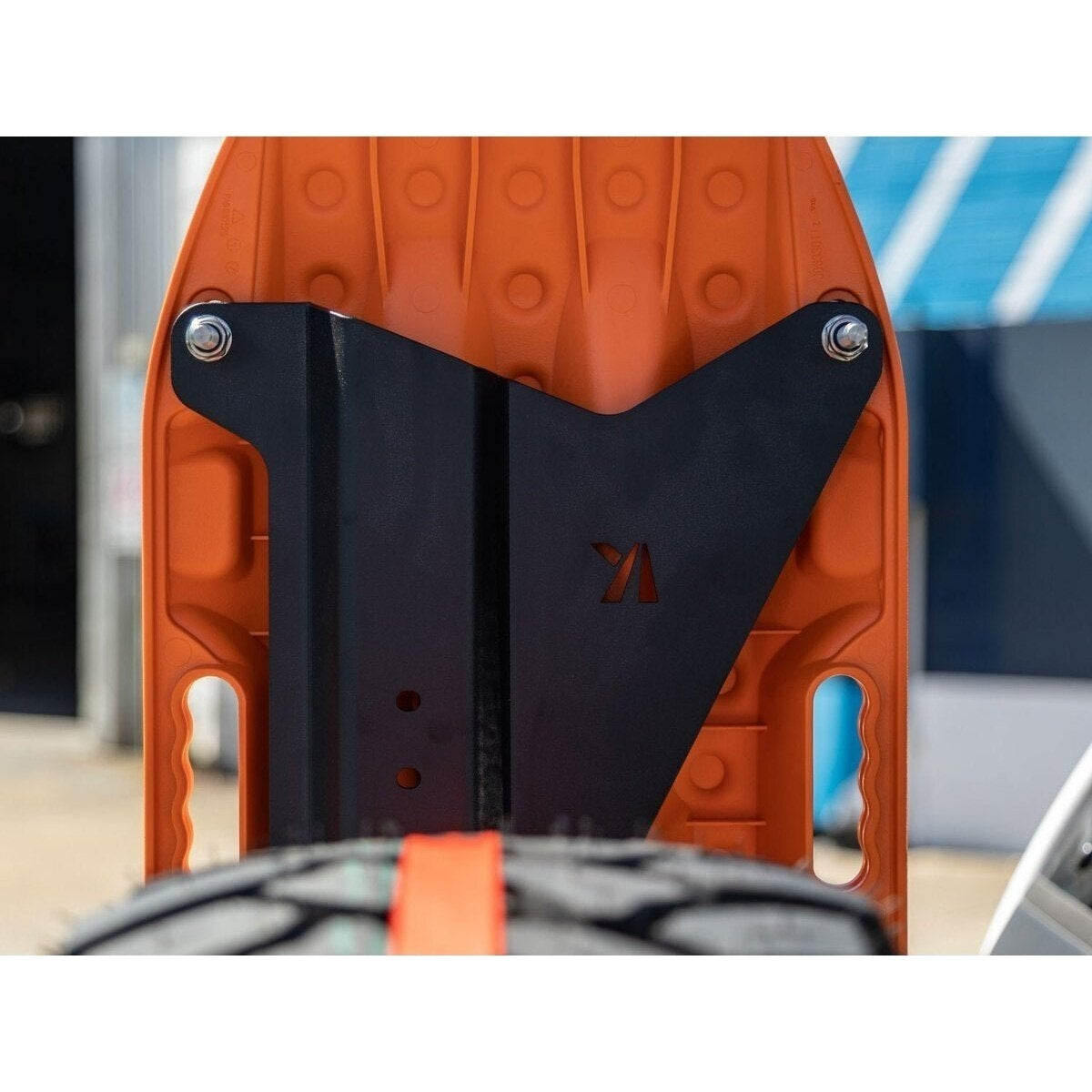

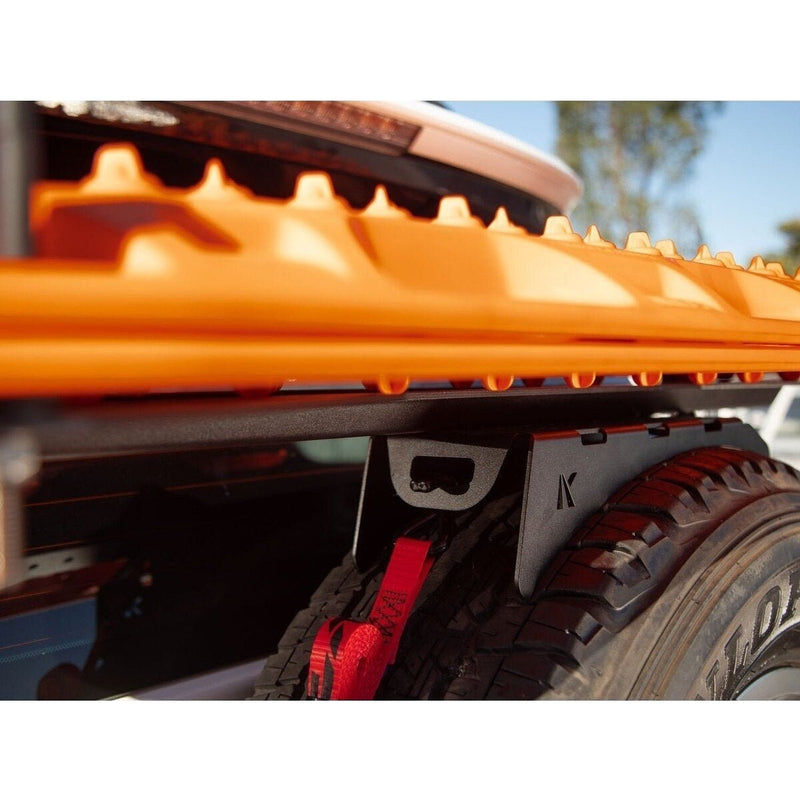

  • Lightweight but strong aluminium design provides a secure surface for mounting your recovery boards, such as Maxtrax, Tred Pro or Tred HD.
  • Out-Back Spare Tyre mount is also multipurpose, with nearly unlimited uses, perfect for 10L water or fuel storage with a Rotopax Style holder (not included).
  • Powder coated in a durable textured matt black finish that will blend in with your tyre and won’t rust.



COMPATIBILITY:

Works with Maxtrax MkII and TRED Pro, TRED HD Recovery Boards.

Compatible with rear-mounted spare tyres from 28-35”. For rear bar setups, please check the clearances required in the images or on the FAQ tab.

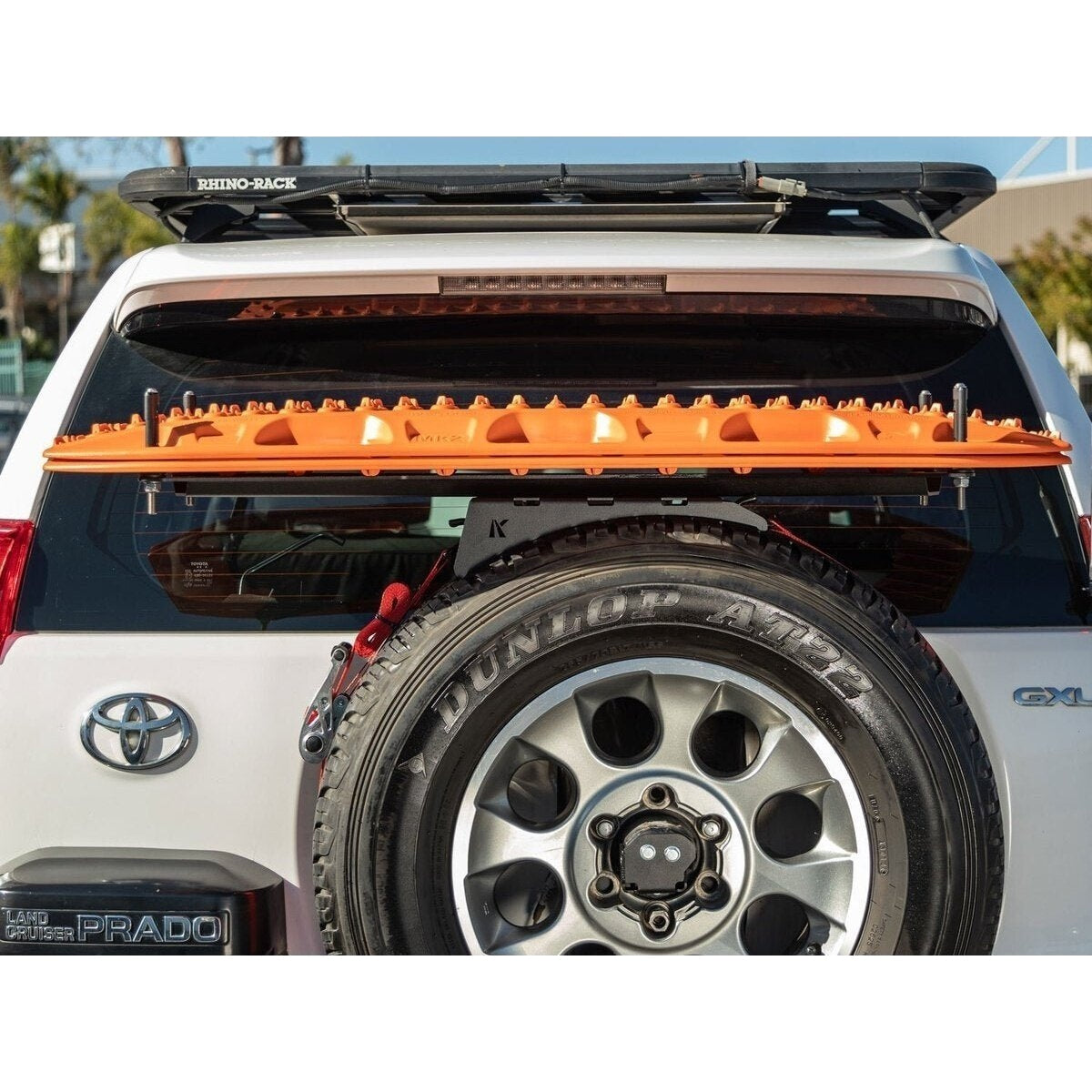

Compatible with: Jeep, Prado 120 & 150 positioned horizontally above the tyre only, FJ can be positioned horizontally above the tyre or angled on the RHS, due to interference with the handle or hitting the light.

Not compatible with factory wheel mount: Nissan Patrol Y61, Toyota LandCruiser LC76, LC100/105.

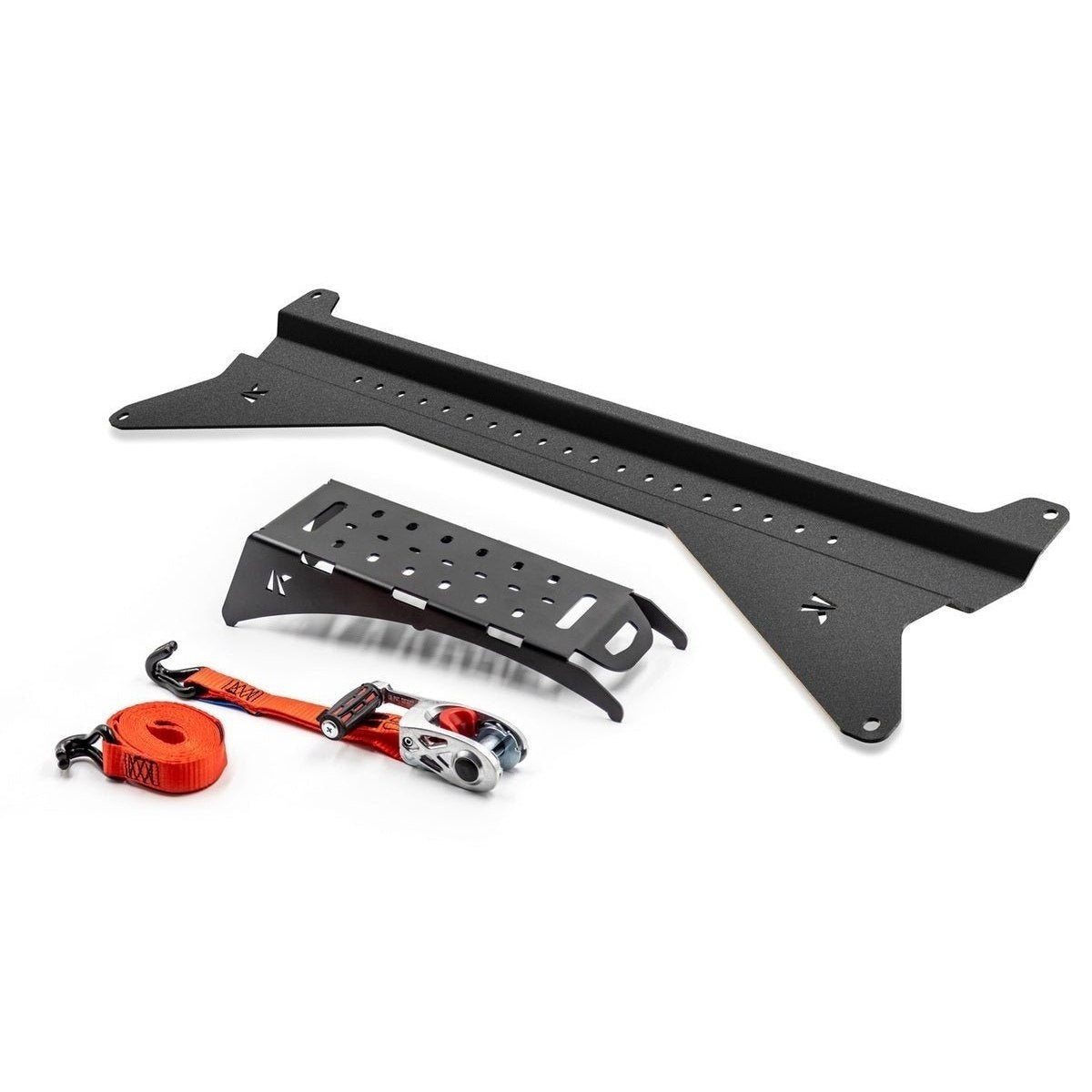

INCLUDES:

  • 1 x Out-Back Maxtrax Mount
  • 1 x Out-Back Spare Tyre Mount
  • 1 x Rola Titan Ratchet Strap 25mm x 3.6m
  • Optional: 4 x Maxtrax 17mm Mounting Pins – Select your preference above



FAQ:

Q. I have a Prado, is this mount compatible with my vehicle?

A. The mount is compatible with Prado 120 & 150 positioned horizontally above the tyre only.


Q. I have an FJ Cruiser, is this mount compatible with my vehicle?

A. The mount is compatible with the FJ Cruiser when positioned horizontally above the tyre or angled on the RHS.

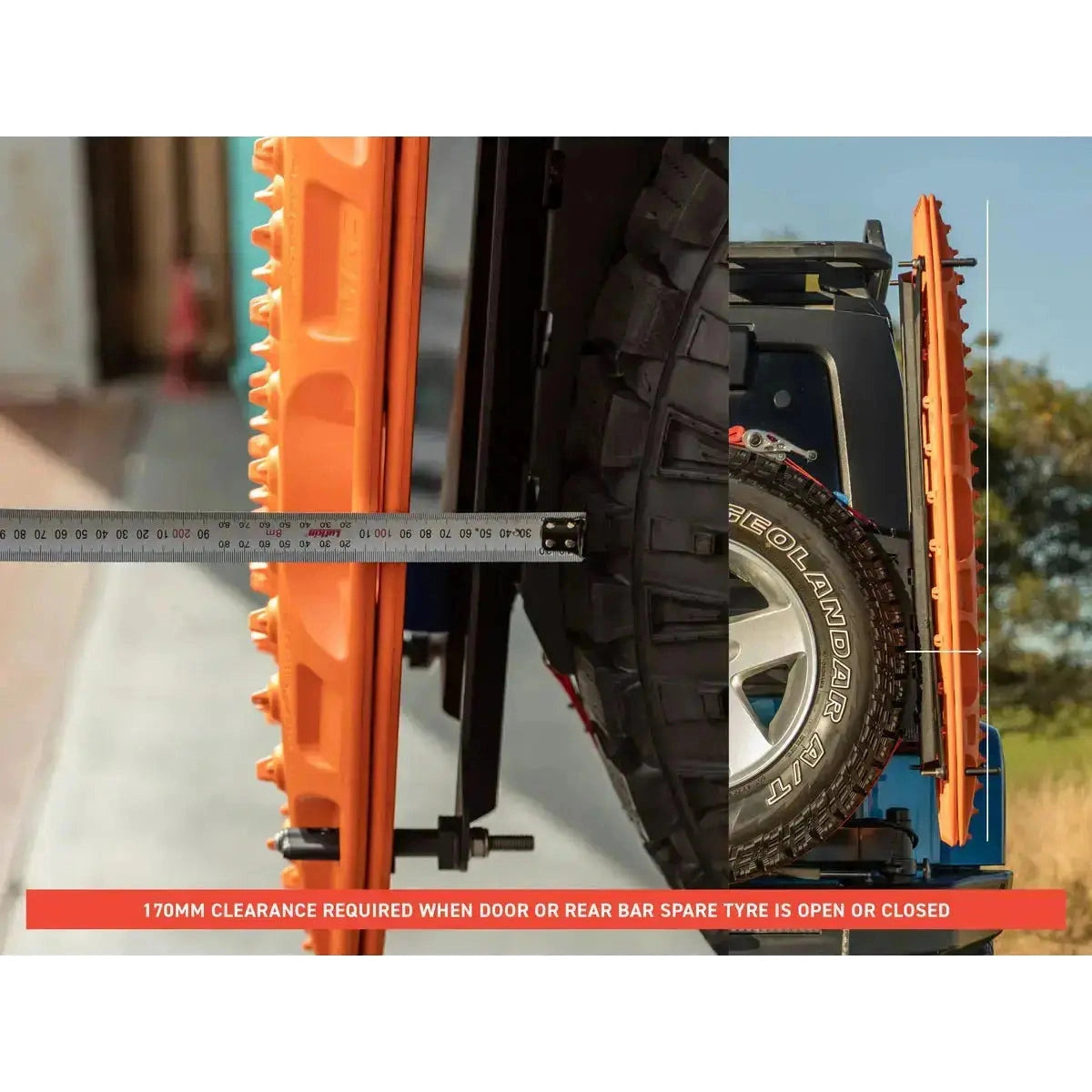

Q. What clearance is required for the Out-Back Mount to be used?

A. 170mm of clearance is required from the edge of the tyre at the centre point, in order to mount the Out-Back Maxtrax Mount. This clearance needs to be maintained when the tyre is in all positions, i.e. when the door or rear bar is both closed and open. See the product listing images for more details.

Due to this clearance, the Out-Back Mount is not compatible with side mounting with some Barn-door models, as the pins either block entry to the passenger side door handle or cannot open fully without fouling on the driver's side taillight.



Q. What other uses are there for the Out-Back Spare Tyre Mount?

A. Along with our Out-Back Maxtrax Mount, it can be used to mount a range of accessories, like our Out-Back Gas Bottle Mount, or 10L water or fuel storage with a Rotopax Style holder.



Q. How much does the Out-Back Maxtrax Mount weigh when loaded with a set of Maxtrax?

A. Loaded with 2 Maxtrax, The Out-Back Maxtrax Mount and Out-Back Universal Spare Tyre Mount weighs 10.7kg.
Loaded with 4 Maxtrax, The Out-Back Maxtrax Mount and Out-Back Universal Spare Tyre Mount weighs 17.5kg.



Q. How big is the mounting platform on the Universal Rear Spare Tyre Mount?

A. The mounting platform on the Out-Back Spare Tyre Mount measures 280x120mm.


Q. How many Maxtrax can the mount hold?

Q. When used with the Maxtrax Pins, this mount gives you the ability to mount 2 or 4 Maxtrax MKII recovery boards.



Q. Can I use two mounts simultaneously?

A. Yes, two mounts can be used simultaneously, just be mindful of the mount spacing, as well as overall weight loading on both the rear door and the ratchet strap.
